Class Diagrams

This section provides visual diagrams of the NFC Access Control System architecture using both Graphviz and PlantUML.

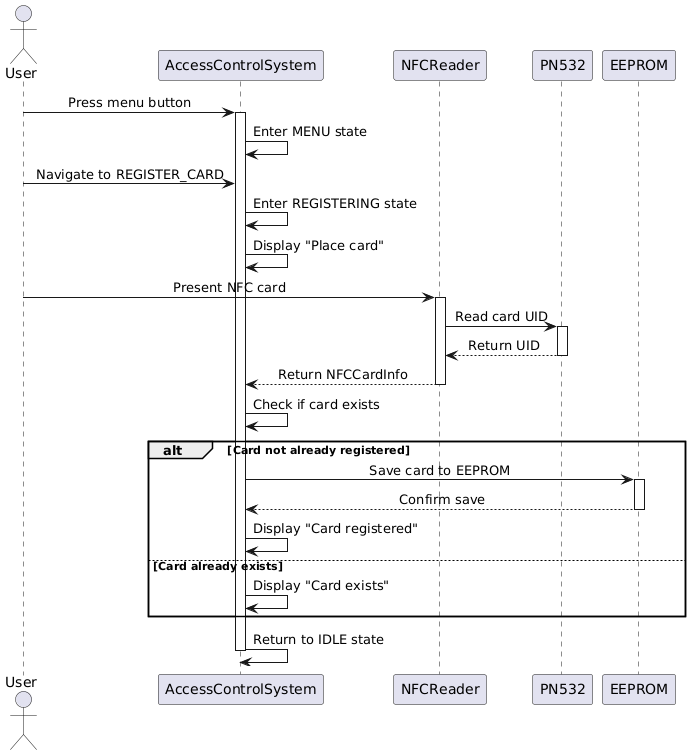

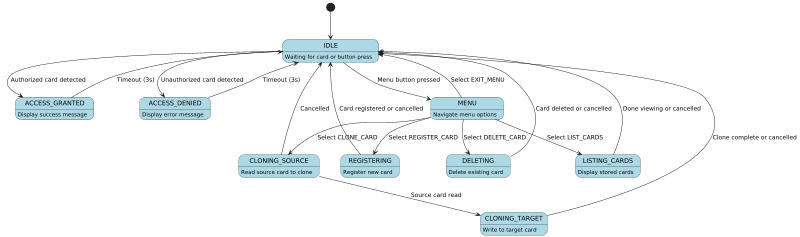

System Architecture Overview

System Component Diagram

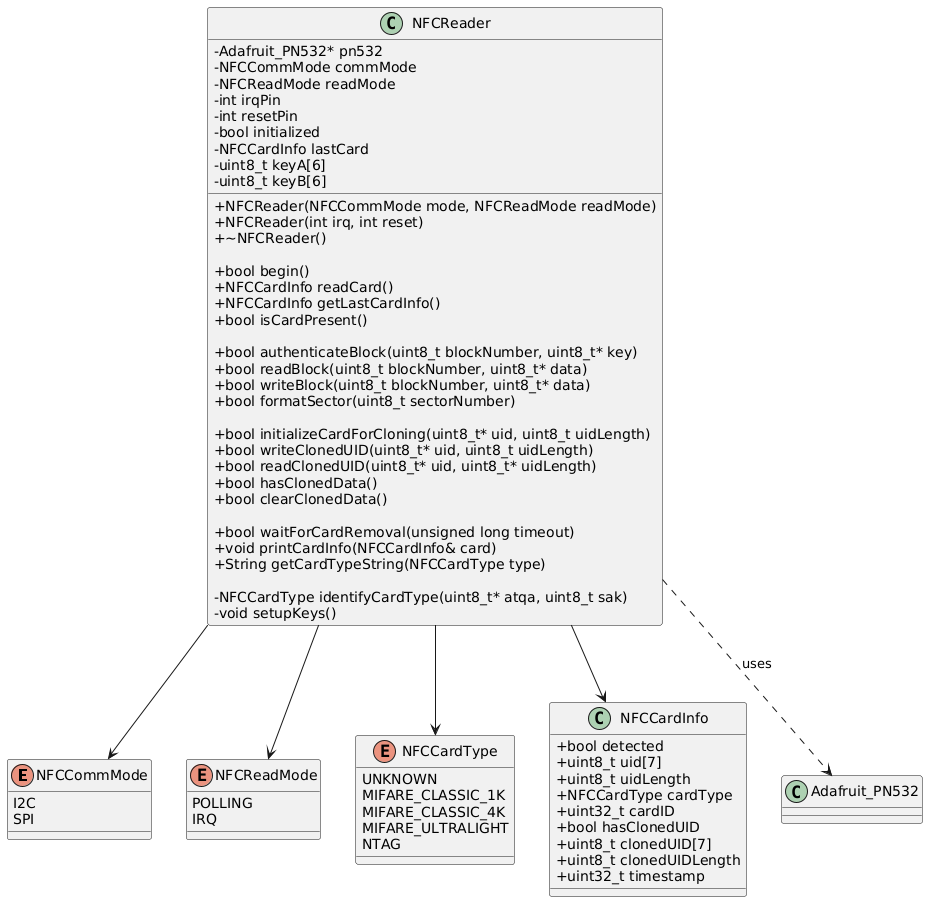

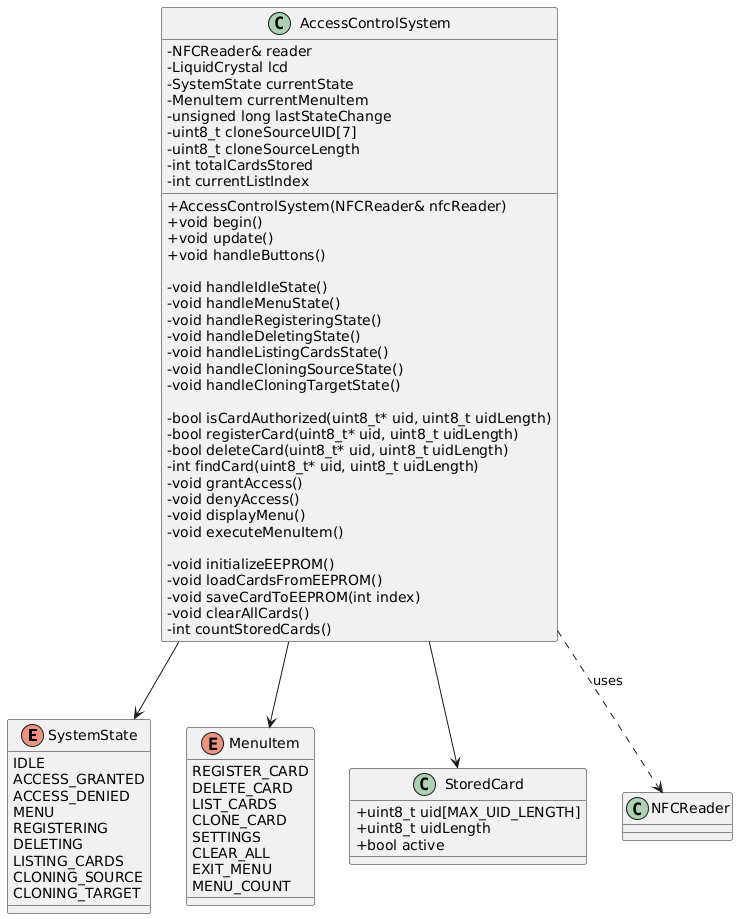

Complete Class Relationships

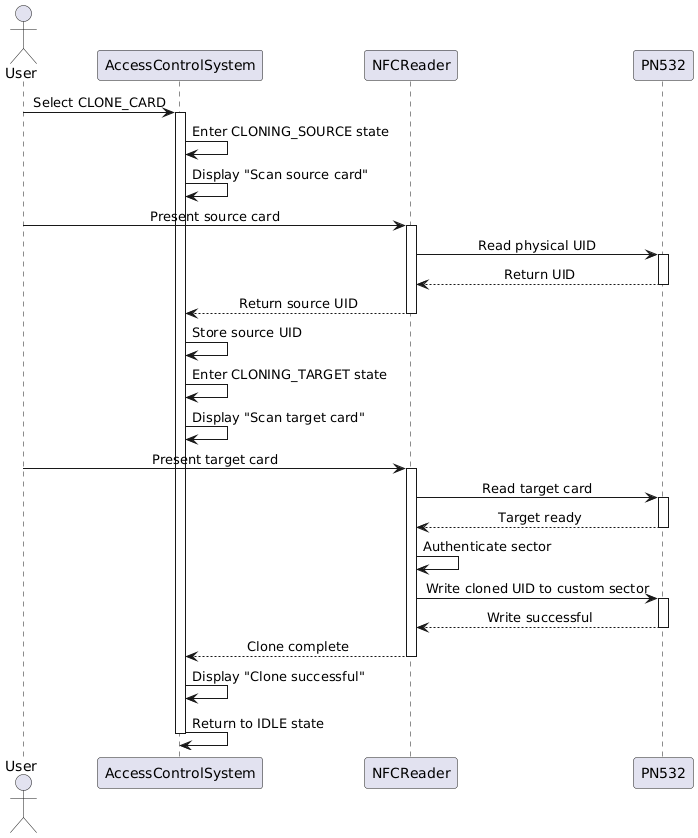

MIFARE Classic Memory Layout for Card Cloning

To use these diagram features in your documentation:

Prerequisites:

For Graphviz: Install Graphviz on your system
- Windows: Download from https://graphviz.org/download/
- Linux: sudo apt-get install graphviz
- macOS: brew install graphviz
For PlantUML: Install Java and download PlantUML jar
- Install Java JRE/JDK
- Download plantuml.jar from https://plantuml.com/download
- Place it in your PATH or update conf.py with the full path
Alternatively, you can use the PlantUML server by modifying conf.py:
```
plantuml = 'http://www.plantuml.com/plantuml'
```
Install Python dependencies:
```
pip install -r requirements.txt
```

Building the documentation:

cd docs
make html

Graphviz Syntax Example:

.. graphviz::
   :caption: My Diagram

   digraph MyGraph {
       A -> B;
       B -> C;
   }

PlantUML Syntax Example:

.. uml::
   :caption: My UML Diagram

   @startuml
   class MyClass {
       + publicMethod()
       - privateMethod()
   }
   @enduml
